Hilitand 38mm Draw Wire Encoder with Incremental Cable Switch - for Cylinders, Testing Machines, Air Pipe Production & Printing Equipment, Robots | Industrial Automation & Motion Control Solution

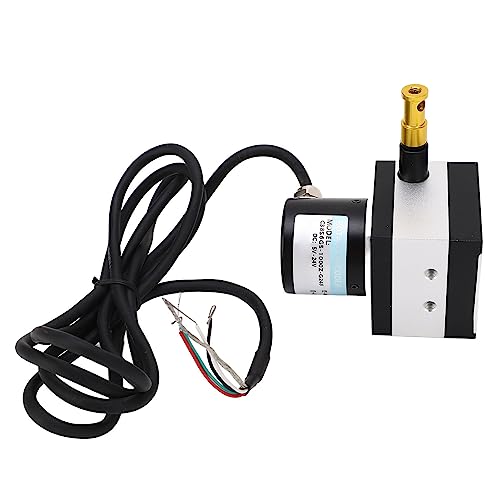

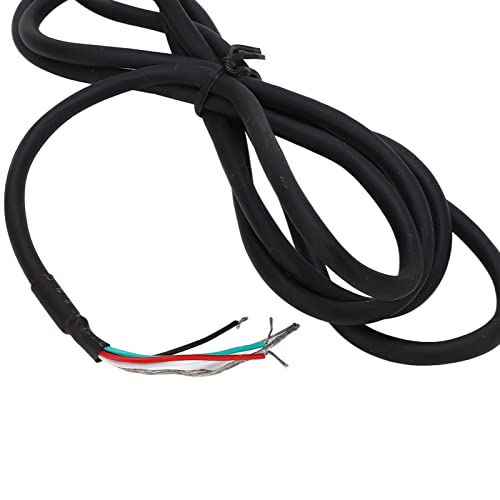

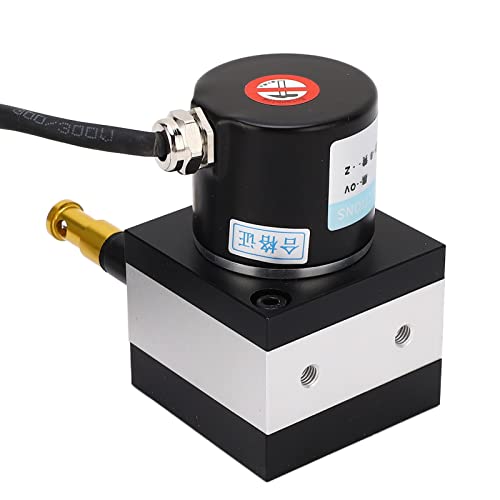

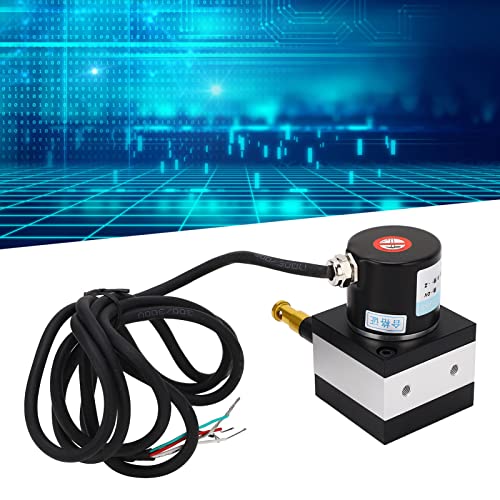

Hilitand 38mm Draw Wire Encoder, Optional Incremental Cable Switch for Cylinder, Testing Machine, Air Pipe Production Equipment, Printing Equipment, Robot [OPERATION MODE]: Efficient linear displacement measuring device. Push pull output and side outgoing line. [WIDE APPLICATION]: Widely used in water conservancy, steel industry, and more. Provides a large choice space. [WIDE APPLICATION]: Suitable for cylinder, testing machine, air pipe production equipment, printing equipment, and more. Spec: Item Type: Draw Wire Encoder Range: Approx. 10 ~ 1200mm / 0.39 ~ 47.24in Voltage: DC8-24V Output: Push pull output Cable Length: Approx. 1.5meter / 4.9ft Main Body Outer Diameter: Approx. 38mm / 1.5in Outgoing Mode: Side outgoing mode Central Shaft Diameter: Approx. 6mm / 0.24in Operating Temperature: -25℃~+85℃ Voltage: DC5-24V Package List: 1 x Draw Wire Encoder How To Use: Take out the product and operate as shown in the figure. Note: 1. During installation, the cable should be vertical to the encoder, and the cable should not rub against the outlet. 2. Do not loosen the cable connector after it is pulled out; otherwise, the sensor may be damaged. Do not exceed the total length of the wire when pulling.
